Measure Tool ID
An optimised solution for reliable, simple and efficient use, this connected identification system is capable of identifying, weighing and measuring small animals.
This solution will save you valuable time while making your data secure and easy to process. Data is transmitted automatically and immediately to software supplied with the solution.
You can therefore process this data directly via the software or simply export it to Excel.
Download the presentation brochure

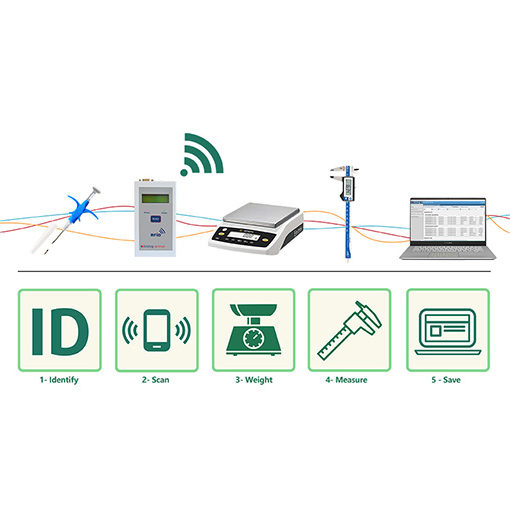

- Identification, weight reading and measurement solution
SCALE

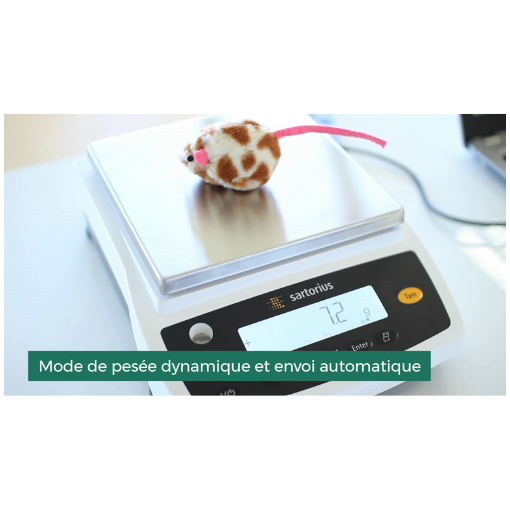

The scale supplied with the solution is a weighing instrument used by laboratories in everyday operations requiring thorough, reliable work.
It is available with varying levels of accuracy and measurement scale.
SARTORIUS Precision Scale* Measuring scale: 2200g
* Display accuracy: 0.1 g
* Pan size: 180 x 180 mm
* Functions: tare/gross/net
* Display with backlight
* Robust and compact construction
* Equipped with a RS 232 output cable

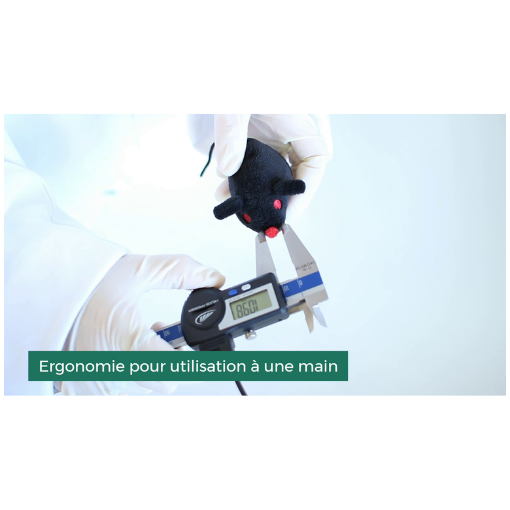

CALLIPER
Digital calliper:
• Measuring range: 150mm
• Tip length: 40 mm
• DIN 862 standard
• Locking screw
• Reading to: 0.01 mm
• Material: stainless steel
• Send data button.

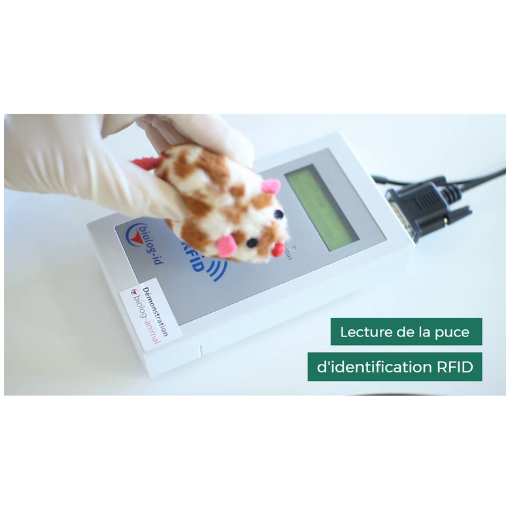

PRD 651-19 READER
The PRD 651-19 reader is a fixed tablet-type reader used to read animal identification transponders. It complies with standards ISO 11784/ISO 11785 and FDX B.
- Reading of the animal’s ISO tag number • Reading distance: 4 to 10 cm depending on transponder type
- Interface: USB, RS232 connector
- Dimensions: L: 15 cm, W: 8.5 cm, THK: 3 cm/Weight: 140 g
- Display: 2 lines of 16 characters (depending on model)

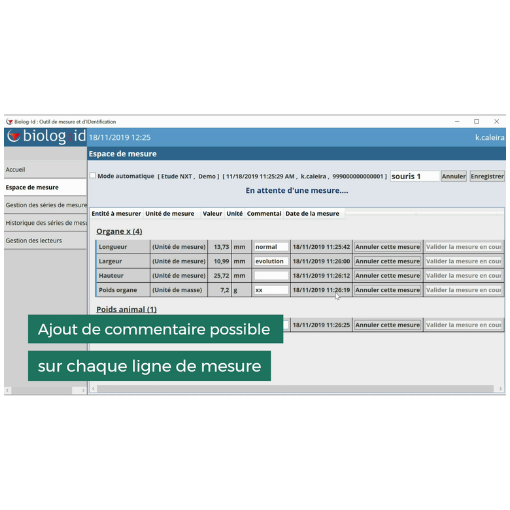

SOFTWARE
Interface for data collection, processing and backup, as well as interpretation.
Possibility of exporting your collected data to Excel with a single click.
